Industrial Planetary Cooking Mixer

Heats and stirs at the same time — planetary agitation with PTFE scrapers sweeps the wall and bottom non-stop, so thick product does not settle, stick or scorch. 100–1000L capacity, four heating modes (gas / steam / electric thermal-oil / induction), food-grade SUS304, hand-wheel tilt or one-button hydraulic discharge. Chili sauce, bean paste, braised meat, jam, fillings — all in one bowl.

💬 Get a Custom Quote ▶ Watch Test-Run Video

✓ Food-grade SUS304✓ CE-marked✓ MOQ 1✓ FOB / CIF / DDP

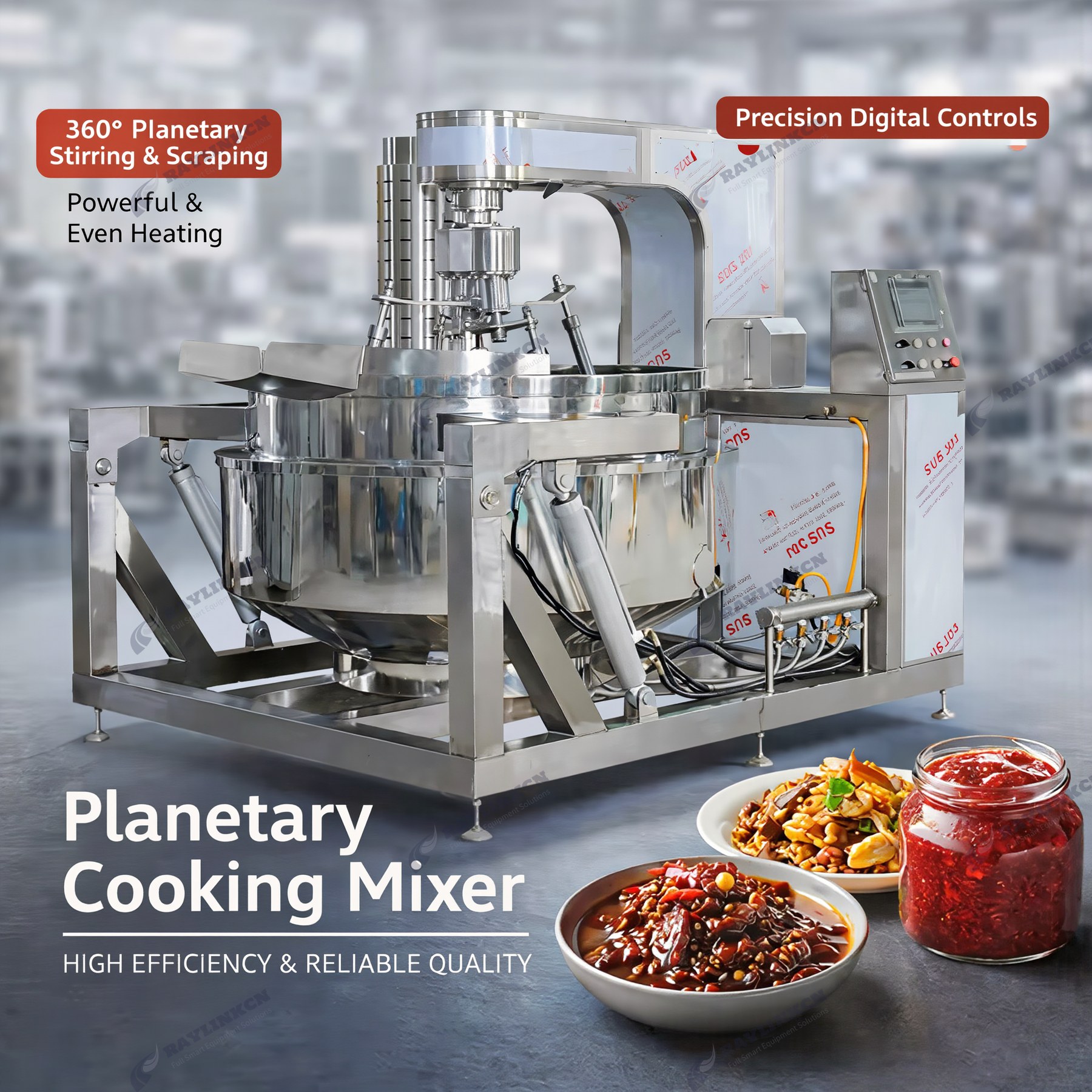

RayLink industrial planetary cooking mixer · 360° wall-scraping

▶ Live test-run video available

Key Advantages

Why this mixer earns its place in your plant

Planetary wall-scraping

The agitator revolves + rotates while scraper blades sweep the wall and bottom non-stop — even heat, no scorching, no sticking.

100–1000L capacity

100–600L standard sizes, 750L and 1000L built to order — sized to your daily output, so you never overpay.

Four heating modes

Gas / steam / thermal-oil / induction — matched to your local energy supply and costs.

Food-grade SUS304

Bowl, agitator and discharge port all in 304 stainless — acid-resistant, easy to clean, export-compliant.

Tilt discharge, two ways

Semi-auto: hand-wheel tilt, simple and robust. Full-auto: hydraulic high-position discharge at the push of a button.

Variable speed on every model

Inverter speed control is standard — low speed for thick or chunky product, higher speed for heat-up and cleaning.

Built for Production

The numbers that matter

100–1000L

Per-batch capacity

Standard 100–600L · 750 / 1000L to order

Heating modes

Gas·Steam·Thermal-oil·Induction

SUS304

Food-grade contact

Every surface touching food

DDP

Door delivery available

Or FOB / CIF — DDP covers freight, duties & clearance

Know the Machine

What is a planetary cooking mixer?

A planetary cooking mixer combines heating and planetary wall-scraping agitation in one tilting bowl. The agitator spins on its own axis while revolving around the bowl, and scraper blades continuously sweep the entire inner surface — heat spreads evenly and the product never settles or scorches. Ideal for large-batch cooking of chili sauce / sambal, bean paste, tomato sauce, jam, braised meat, all kinds of fillings and central-kitchen sauces. When a batch is done, the bowl tilts to discharge — by hand wheel (semi-auto) or hydraulics (full-auto).

🔥

GasLowest running cost where gas is available

♨️

SteamGentle and even — great for sauces & pastes

🛢️

Thermal-oilElectric heaters warm oil in the double jacket — steady heat, no boiler or gas line

⚡

InductionFastest heat-up, highest thermal efficiency

Look Inside

Solidly built — and we prove it on video

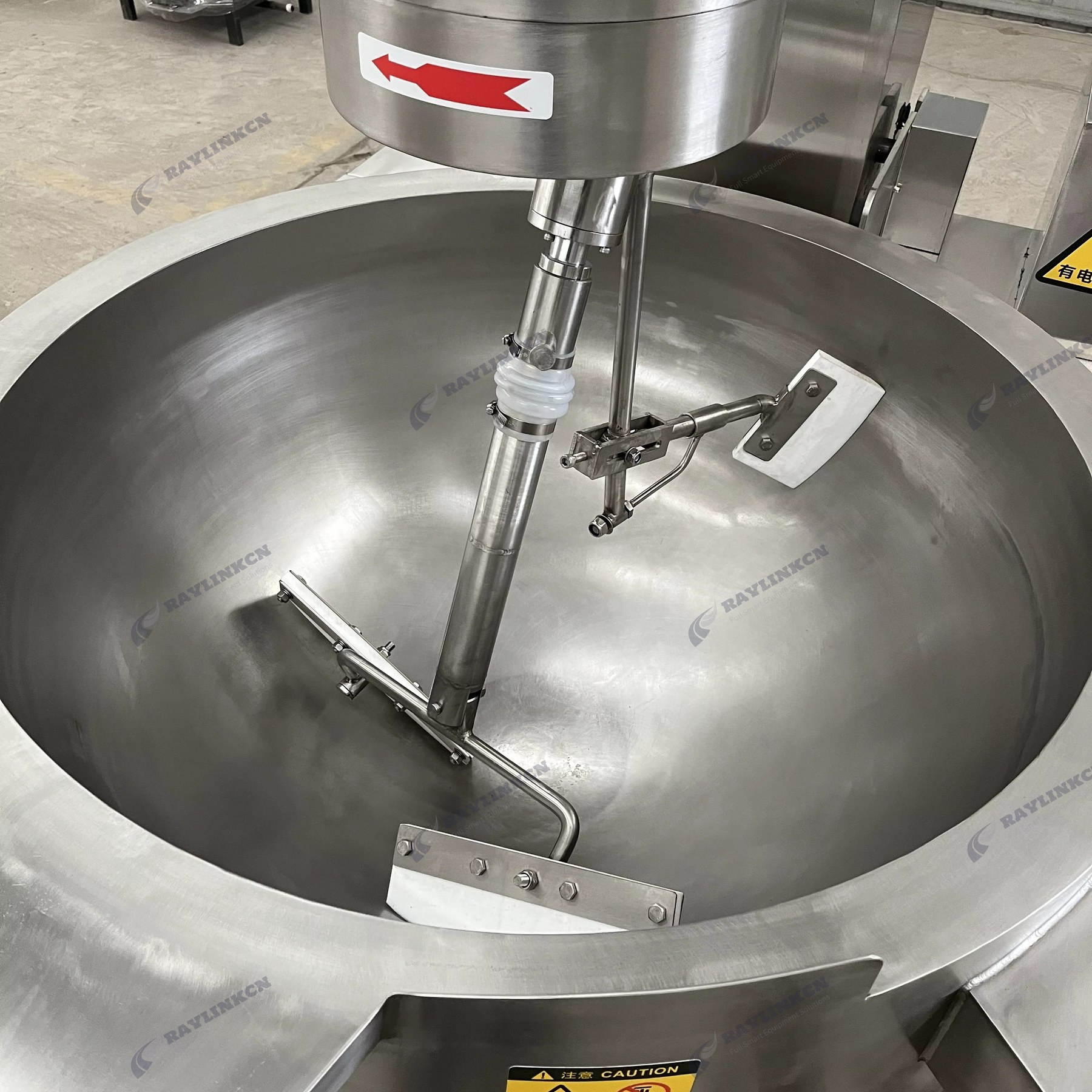

Planetary stir + wall-scraping blades

The core of no-scorch cooking. Blades revolve + rotate; scrapers hug the wall and bottom so nothing settles or burns. Scraper blades in food-grade PTFE.

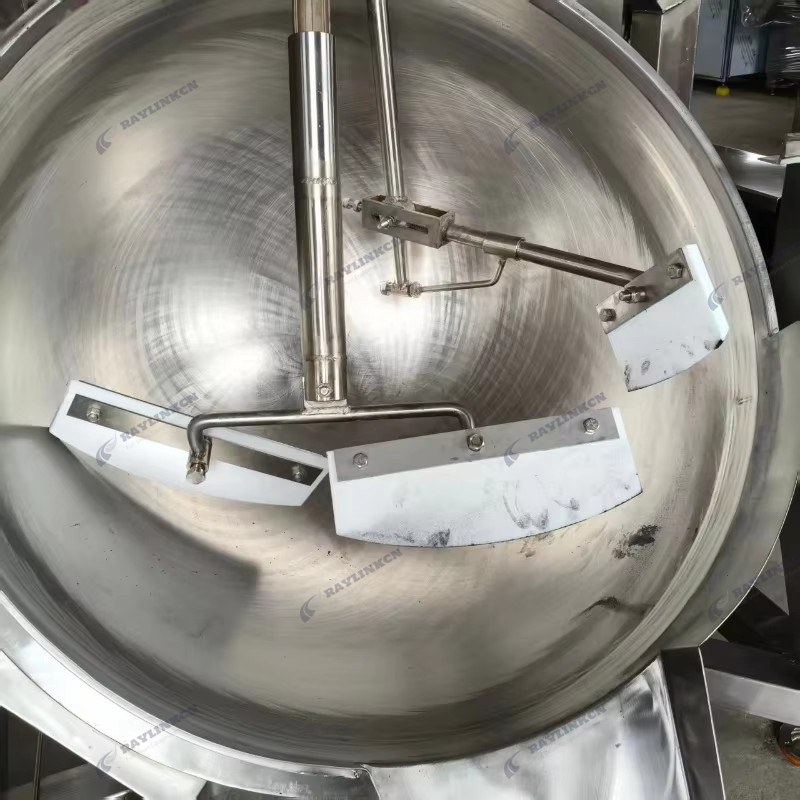

Dual-direction scraper paddles

Top view shows the paddles cover the whole bowl — no dead zones; thick sauces and chunky materials all mix evenly.

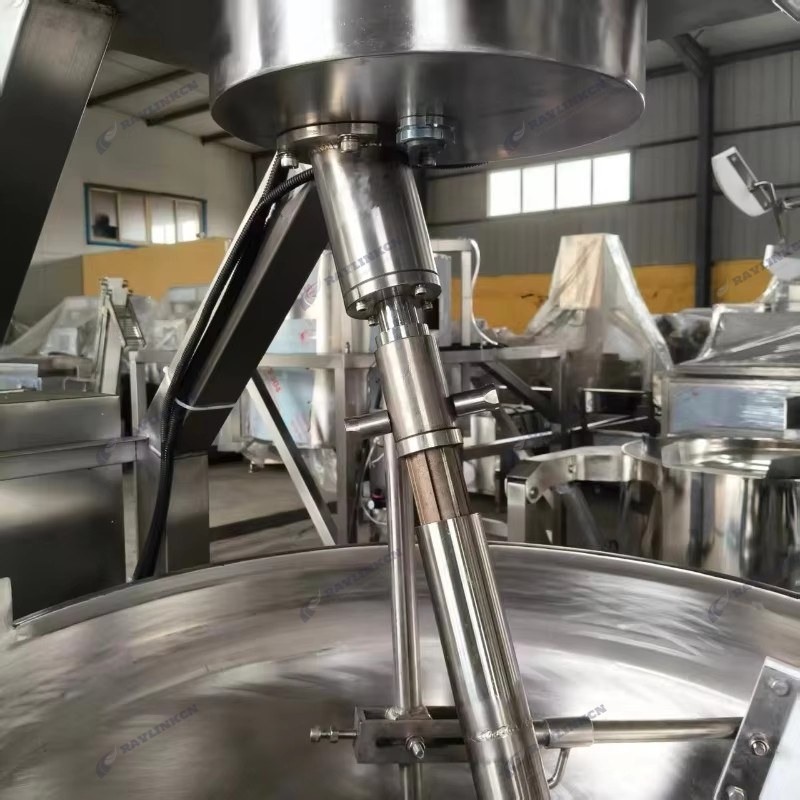

Planetary drive shaft

Revolve + rotate transmission — powerful and stable, built for long continuous cooking.

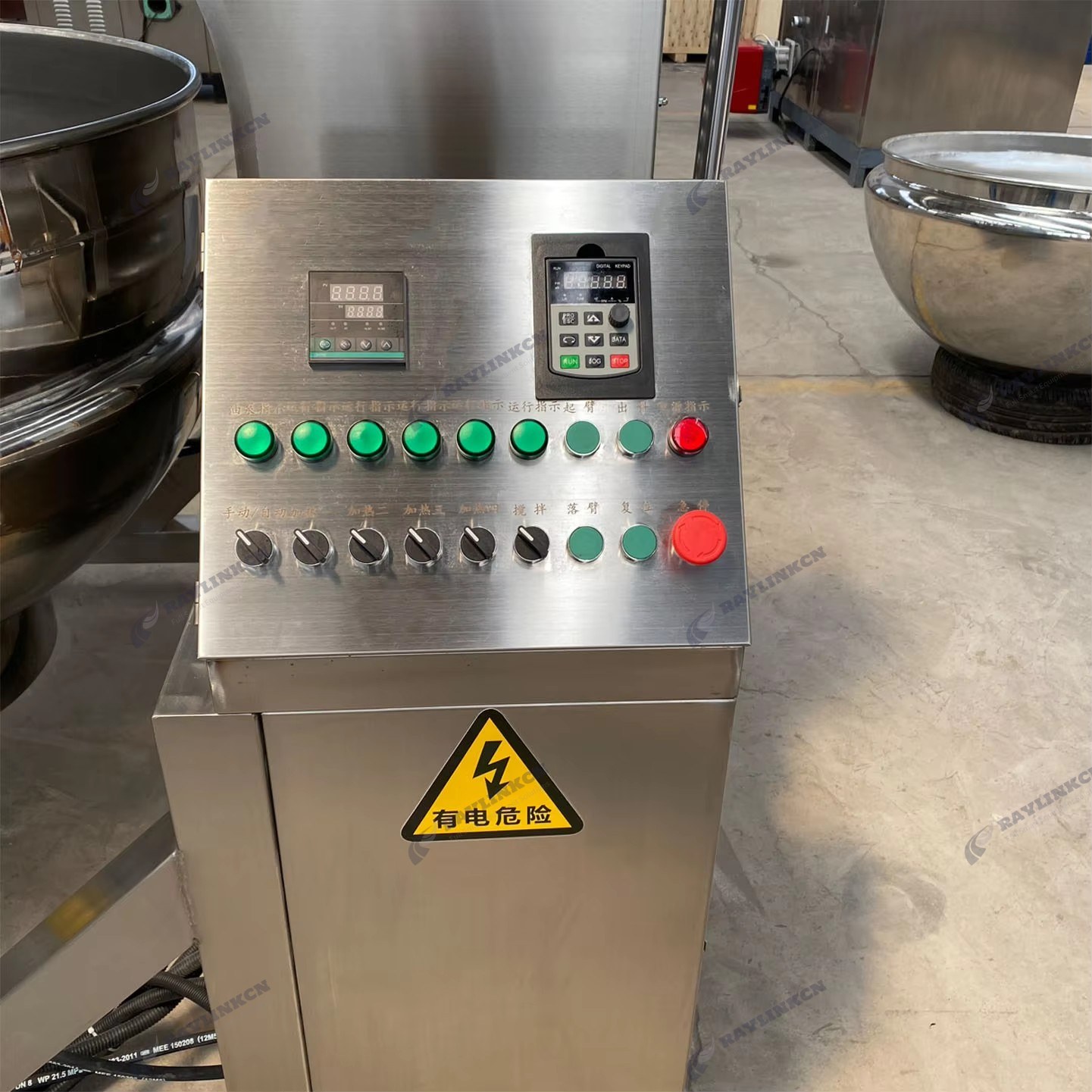

Stainless control cabinet (full-auto)

Heating, stirring speed (inverter) and hydraulic discharge run from one cabinet. Temperature display with automatic temperature control is available as an option.

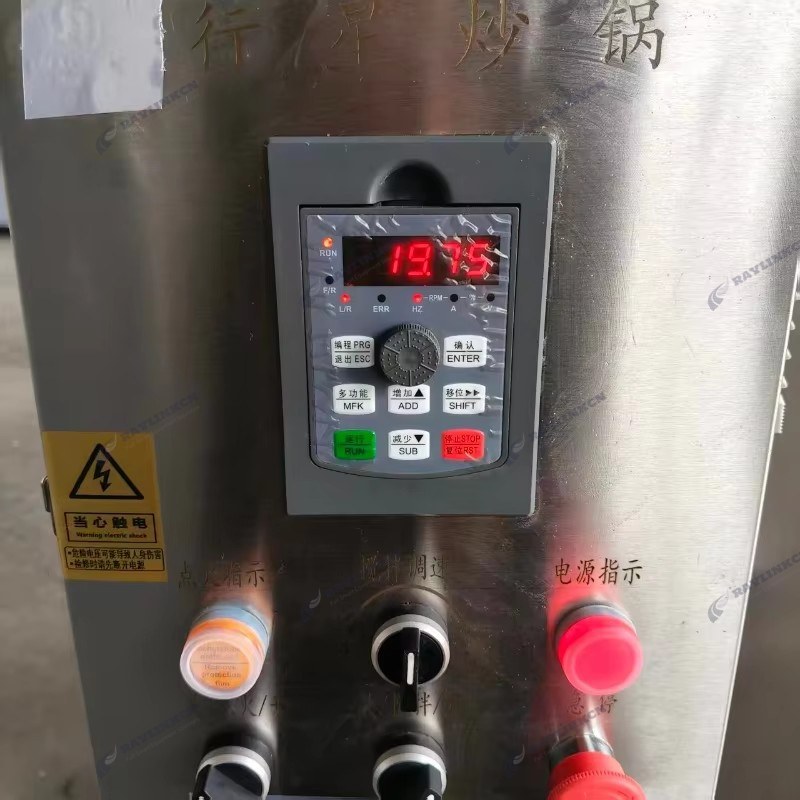

Variable-frequency speed control

Adjust stir speed to the material — low speed for thick paste and chunky or delicate pieces, higher speed for heat-up and cleaning.

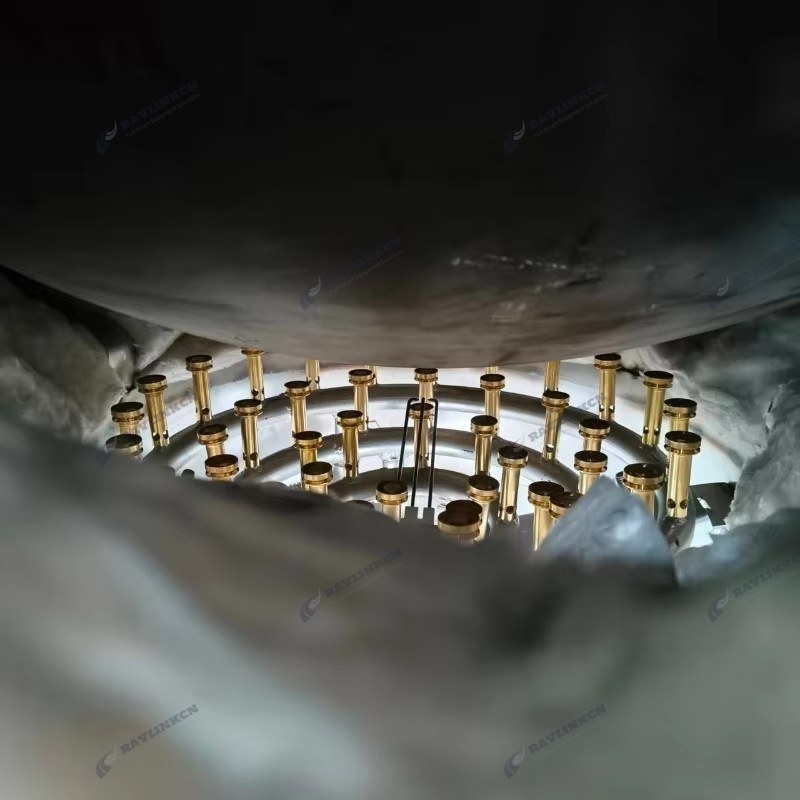

Multi-point gas burners + insulation (gas type)

A ring of brass burners heats from below for even heat; outer insulation cuts heat loss and adds safety.

🎬 Seeing is believing — before the balance payment we send a live test-run video of your exact machine, filmed on the production floor.

SEE IT FOR YOURSELF

Real Machine Test Videos

Filmed on the production floor, real machines actually running — these are the very videos we send to customers.

Fully-Automatic · Full ProcessLoad → heat & stir → hydraulic tilt-out

Inside Our ShowroomZhucheng production base · rows of machines in production

Semi-Automatic · GasManual tilt · cost-effective

Automatic · Stir-Frying PotatoReal test batch · no scorching or sticking

Control Panel in ActionTemperature / speed / time at a glance

🎬 Want a video for your exact capacity / heating type? Just ask Wang Kun on WhatsApp

Specifications

Specification Table

All built to order · capacity / heating / voltage / control all customizable

Capacity	Bowl Ø	Depth	Stir Power	Heating (electric/induction)	Hydraulic (full-auto)	Version	Discharge
100 L	Ø800 mm	400 mm	1.5 kW	18–24 / 20 kW	1.5 kW	Semi-auto / Full-auto	Hand-wheel / Hydraulic
200 L	Ø900 mm	450 mm	1.5 kW	18–24 / 20 kW	1.5 kW	Semi-auto / Full-auto	Hand-wheel / Hydraulic
300 L	Ø1000 mm	500 mm	2.2 kW	27–36 / 30 kW	1.5 kW	Semi-auto / Full-auto	Hand-wheel / Hydraulic
400 L	Ø1100 mm	550 mm	2.2 kW	36 / 40 kW	1.5 kW	Semi-auto / Full-auto	Hand-wheel / Hydraulic
500 L	Ø1200 mm	600 mm	2.2 kW	48 / 45 kW	1.5 kW	Semi-auto / Full-auto	Hand-wheel / Hydraulic
600 L	Ø1300 mm	650 mm	2.2 kW	48 / 50 kW	1.5 kW	Semi-auto / Full-auto	Hand-wheel / Hydraulic

· 750L / 1000L also built to order; specs provided on request.
· Gas / steam types have no electric heating power (heat source is gas / steam); only stirring (plus hydraulics on full-auto) uses electricity. Heating power is rated; actual thermostatic cycling averages lower.
· Overall size / weight, e.g. (200L): semi-auto approx. 1400×1200×2000 mm / 300 kg; full-auto approx. 1700×1200×1550 mm / 500 kg. Other capacities depend on heating type — given with the quote.
· Food-grade SUS304. Inverter speed control is standard on all models; temperature display with automatic temperature control (holds the set product temperature) is available as an option.

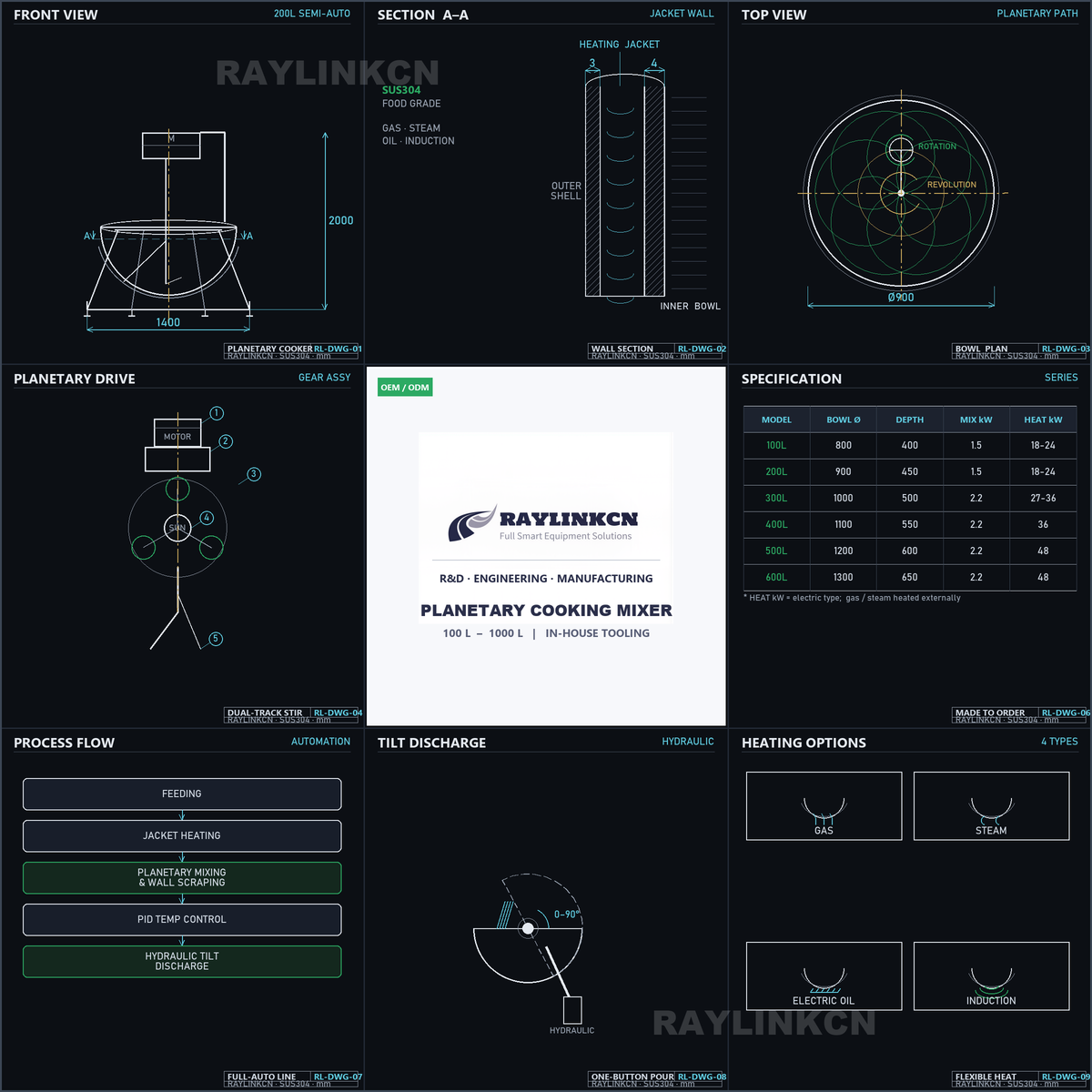

Engineering Drawings

Inside, at a glance

Front view · jacket section · planetary path · drive assembly · size series · process flow · hydraulic tilt · four heating modes

One Machine, Many Uses

What it can make for you

From raw to finished — one machine covers many categories

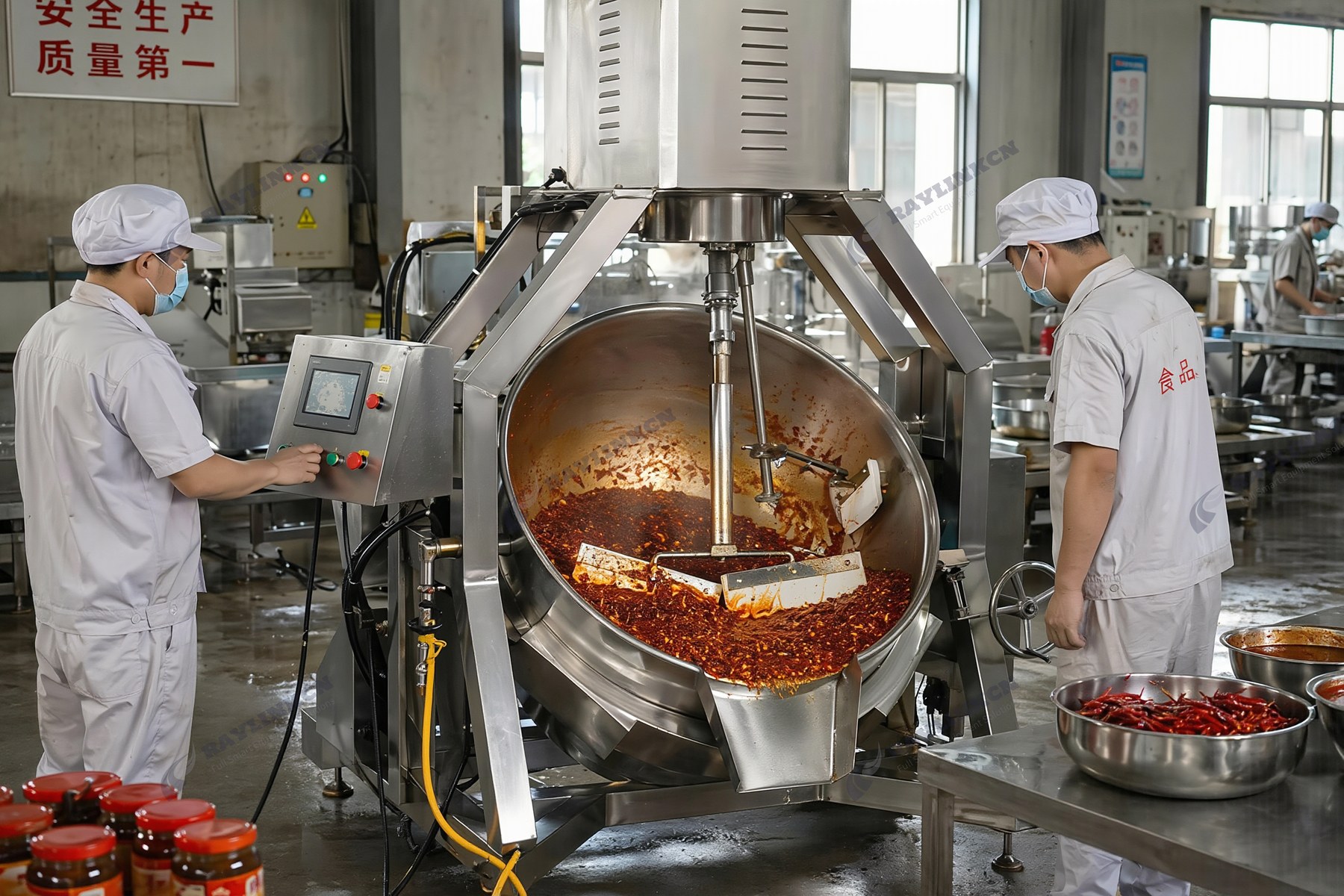

Real workshop · 300L planetary mixer cooking chili sauce continuously

🌶️

Chili Sauce / Sambal

🍅

Tomato Sauce

🫘

Bean Paste

🍯

Jam

🍖

Braised Meat

🥟

Meat Filling

🍛

Curry

🍬

Candy / Maltose

🥜

Sesame / Nut Paste

🍲

Hot-pot Base

🍱

Ready Meals

🏭

Central-kitchen Sauce

🥩

Meat Floss / Abon

🍮

Coconut Jelly / Dodol

🥘

Rendang

🌿

Spice Paste / Bumbu

🍚

Fried Rice / Nasi Goreng

🍫

Chocolate / Filling

See it before you buy

The biggest worry in cross-border sourcing is trust — we remove the risk with four guarantees

🎬

Test-run video

Before the balance, we send a live test-run video of your machine

📹

Real workshop footage

Videos shot on the production floor in Zhucheng — real people, real machines, not studio ads

🔍

Third-party inspection

SGS / BV inspection arranged on request

🛡️

Staged payment

Deposit to produce, balance after the test video — your funds stay safe

Before You Order

Straight answers to what buyers ask

Q.Are you a manufacturer or a trading company?

RayLink is a specialized food-machinery exporter in Qingdao, working closely with vetted manufacturers in the Zhucheng (Shandong) "food-machinery capital of China" cluster. You get factory pricing plus one accountable, English-speaking contact — from configuration and QC to export docs and door-to-door logistics, one person sees it through.

Q.Before I pay, how do I know the machine and company are real?

Before the balance payment we send a live test-run video of your exact machine, filmed on the production floor; third-party inspection (SGS / BV) can also be arranged.

Q.How is my payment protected?

Payment is by T T: typically 30% deposit to start and the balance before shipment. Orders can also run through an Alibaba Trade Assurance order, with funds held by the platform until the agreed terms are met.

Q.What is the lead time?

Everything is built to order. After the deposit and drawings are confirmed, production is scheduled against the build queue at that time, plus sea-freight time. Once your capacity and heating type are set, we give the lead time with the quote.

Q.Can you customize? What is the MOQ?

Yes — capacity (100–1000L), heating type, voltage, discharge and nameplate are all customizable. No MOQ, one unit minimum; we take single machines and full lines alike.

Q.Certifications / after-sales / shipping terms?

The equipment is CE-marked and manufactured under an ISO 9001 quality system. Warranty is 12 months from the date of shipment, covering the main structure and major components, wear parts excluded; common spares are in stock and best shipped in the same container. We also provide video-guided installation & commissioning and online technical support. Shipping FOB / CIF / DDP — DDP means freight, duties and clearance to your door are all included, ready to use even with zero import experience.
